  • FT-103自然堆积松装密度计

    发布时间: 2019-08-28 11:44:30 点击: 193

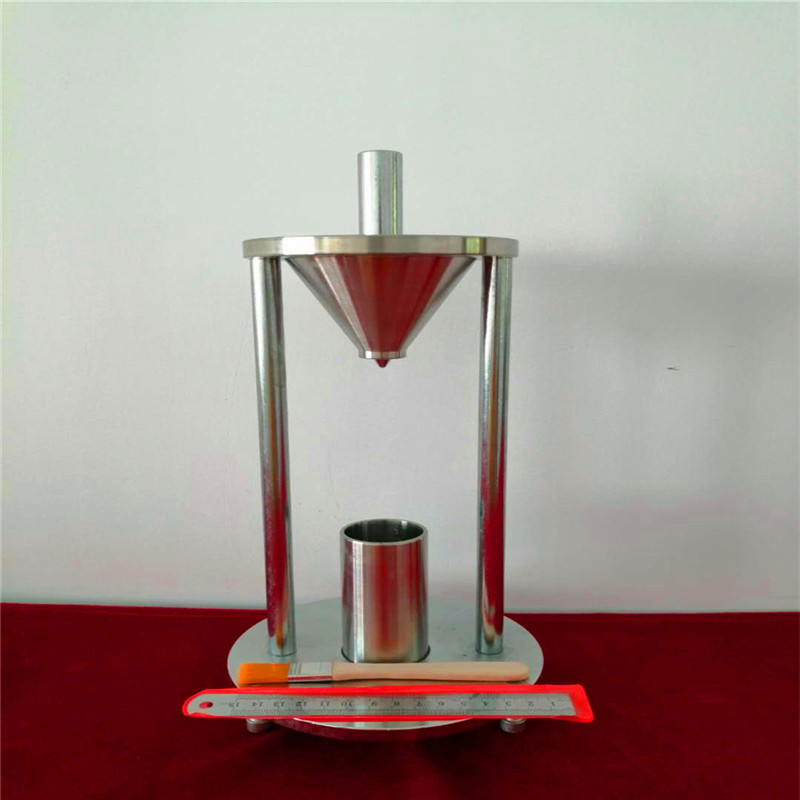

    FT-103自然堆积松装密度计

    FT-103自然堆积松装密度计

    FT-103Natural packing density meter

    一、参照标准  Administer Standard

    GB/T 16913.3-1997。适用于粉尘堆积密度的测定。

    GB/T 16913.3-1997.This device applies to the measurement of powder packing density.

    二、原理Principle

    粉尘从漏斗口自由落下充满量杯;测定松装状态下量杯内单位体积粉尘的质量,即粉尘堆积密度。

    powder freely drop from  hopper opening at a certain height to full of measuring cup. Measure the mass of unit volume  in measuring cup  , namely powder bulk density

    三、参数规格Technical specifications

    漏斗(流出口直径12.7mm) Funnel (outlet diameter 12.7mm)

    漏斗不锈钢材料制成,其中漏斗锥度为60°±0.5

    Funnel is made of SS material, in which the funnel taper is 60°±0.5.

    量杯容积:100ml    The measuring cup volume: 100ml

    配置附件:下料堵塞棒,毛刷,钢尺Configuration accessories: blanking blocking rod, wool brush, steel ruler
